| HOME > PRODUCTS > HIGH SPEED DOUBLE COLUMN MACHINE |
 |
|
| |
 |
| MODEL |
WM-6 |
WM-8 |
WM-10 |
| Controller |
MITSUBISHI M70 / M720 / M730 |
| SIEMENTS 810D / 840D; FANUC SERIES |
| Travel ( X / Y / Z ) |
500 / 600 / 360 mm |
700 / 800 / 400 mm |
700 / 1000 / 400 mm |
| Spindle Nose To Table |
90 / 450 mm |
168 / 568 mm |
166 / 566 mm |
| Table Dimension |
500 / 600 mm |
700 / 800 mm |
700 / 1100 mm |
| T - Slots |
14 x 6 x 100 mm |
14 x 7 x 100 mm |
14 x 7 x 100 mm |
| Max. Loading Weight |
500 kg |
750 kg |
750 kg |
| Spindle Motor |
5 / 8.5 / 13.7 / 19 KW |
5 / 8.5 / 13.7 / 19 KW |
19 / 26 KW |
| Spindle Speed |
3,000 - 40,000 rpm |
3,000 - 40,000 rpm |
0 - 24,000 rpm |
| Spindle Taper |
ISO 25 / ISO 30 |
ISO 25 / ISO 30 |
|
| HSK 32E / 40E / 50E |
HSK 32E / 40E / 50E |
HSK 50E / HSK 63A |
| ATC No. of Tool |
20 |
20 |
20 |

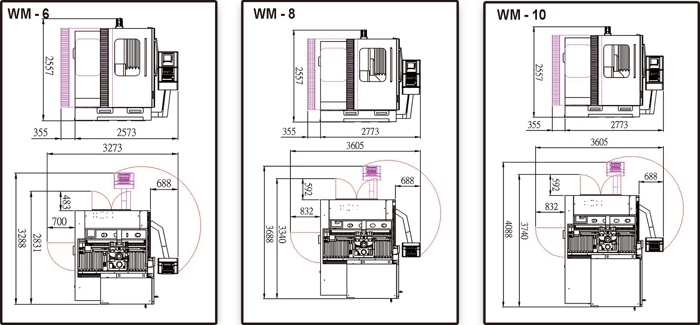

| Machine Size ( L / W / H ) |
2600 / 2600 / 2600 mm |
2800 / 2800 / 2600 mm |
3200 / 2800 / 2600 mm |
| Weight |
5000 kg |
6500 kg |
7500 kg |
| Power Required |
18 KVA / 25 KVA |
18 KVA / 25 KVA |
25 KVA / 35 KVA |
| Air Pressure Required |
6kgf/cm |
|
* Notes: Distance, spindle nose to table, changed by different spindle choosen.
Specifications are subject to chang without prior notice. |
|
| Standard Accessories |
| Spindle Cooling System |
| Auto Lubrication System |
| Electrical Cabinet System |
| Working area cooling System |
| Enclosed Splashguard |
| Auto Tool Length Measurement |
| Lighting System |
| Adjusting Tools |
|
|
| Optional Accessories |
| Spindle With air-oil Lubrication System |
Tool Holder & Chunck |
| Laser Tool Measurement |
Voltage Regulator |
| Cutting oil mist Device |
Transformer |
| Mist Collecting Device |
Water Gun |
| Work-piece Measurement |
Chip Conveyor |
| Oil / Water Separator |
|
|
|
| |
 |
| |
|
|
 |
